Sidelite & Backlite Combination Bent Glass Tempering

Time：2017-11-06 14:53:39Hits：6315

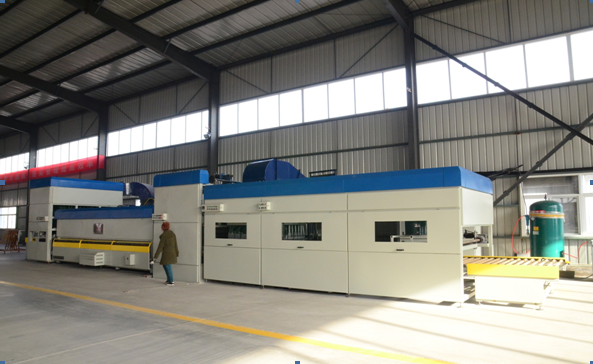

Multi & Single Curvature Bent Glass Tempering Machine is a special plant used to produce the bent tempered glass with multi curvature and single curvature, which mainly used in the fields of rear doors and side doors of automotives, trucks, furniture, etc

Related introduction

1. Machine Application

2. Technical Specification

Model	Single Curvature Tempered Glass (mm)				Double Curvature Tempered Glass Size (mm)
Model	Max. Size	Min. Size	Thickness	Min. Radius	Ma×. Size	Min. Size	Thickness
LV-TB1608L-08V	1600×⌒800	150×⌒250	3.2-6	≥350	⌒1600×⌒800	⌒400×⌒300	3.5-6
LV-TB1612L-08V	1600×⌒1200	150×⌒250	3.5-6	≥550	⌒1600×⌒800	⌒400×⌒300	3.5-6
LV-TB1610L-10V	1600×⌒1000	150×⌒250	3.5-6	≥450	⌒1600×⌒1000	⌒400×⌒300	4-6
LV-TB1615L-10V	1600×⌒1500	150×⌒300	3.5-6	≥800	⌒1600×⌒1000	⌒400×⌒300	4-6
LV-TB1810L-09V	1800×⌒1000	150×⌒300	4-6	≥450	⌒1800×⌒900	⌒400×⌒300	4-6
LV-TB1815L-12V	1800×⌒1500	150×⌒350	4-6	≥800	⌒1800×⌒1200	⌒400×⌒300	4-6
LV-TB2012L-10V	2000×⌒1200	150×⌒350	4-6	≥550	⌒2000×⌒1000	⌒400×⌒300	5-6
LV-TB2016L-12V	2000×⌒1600	150×⌒350	4-6	≥800	⌒2000×⌒1200	⌒400×⌒300	5-6
LV-TB2212L-10V	2200×⌒1200	150×⌒350	4-6	≥550	⌒2200×⌒1000	⌒400×⌒300	5-6
LV-TB2218L-12V	2200×⌒1800	150×⌒400	4-6	≥1000	⌒2200×⌒1200	⌒400×⌒300	5-6
